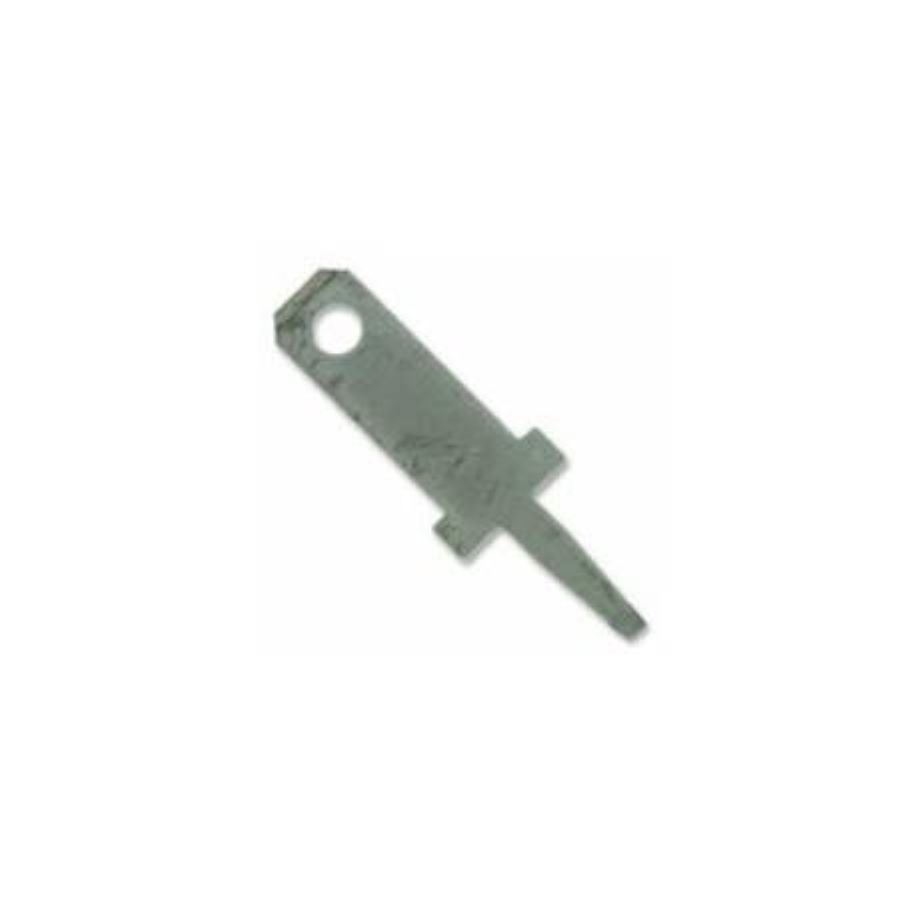

62395-1
Manufacturer:
TE Connectivity
Mfr.Part #:
62395-1
Datasheet:
Description:
Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 16.26 mm |
| Termination | Tab |
| Height | 8.38 mm |
| Material | Brass |
| Packaging | Reel |
| Depth | 3.96 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Gender | Male |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 2.794 mm |
| Terminal Material | Brass |
| Hole Diameter | 1.1684 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Copper |
| PCB Thickness | 1.5748 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 2.79 mm |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Stud Size | 2.79 mm x 0.51 mm |
Stock: 12360
Distributors
pcbx
pcbxUnit Price$0.44730
Ext.Price$0.44730
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44730 | $0.44730 |
| 10 | $0.22365 | $2.23650 |
| 50 | $0.17204 | $8.60200 |
| 100 | $0.13234 | $13.23400 |
| 500 | $0.10180 | $50.90000 |
| 1000 | $0.07831 | $78.31000 |
| 3000 | $0.06024 | $180.72000 |
| 5000 | $0.04634 | $231.70000 |
| 10000 | $0.04634 | $463.40000 |
| 30000 | $0.04318 | $1295.40000 |
| 50000 | $0.04129 | $2064.50000 |
